Supported Boards

List of supported PSOC™ 6 boards:

Board name	Connectivity	Special feature
CY8CKIT-062S2-AI	Wi-Fi, BT	user button, compact form factor, USB-C, MEMS microphone, radar sensor, pressure sensor, 6-axis IMU, 3-axis magnetometer
CY8CPROTO-063-BLE	BLE	user button, compact form factor

CY8CKIT-062S2-AI

_images/board_CY8CKIT-062S2-AI.png

CY8CPROTO-063-BLE

_images/board_CY8CPROTO-063-BLE.png

CY8CKIT-062S2-AI

Name in Arduino IDE: CY8CKIT-062S2-AI
Product Page

Pinout Diagram

_images/CY8CKIT-062S2-AI_pinout.png

CY8CPROTO-063-BLE

Name in Arduino IDE: CY8CPROTO-063-BLE
Product Page

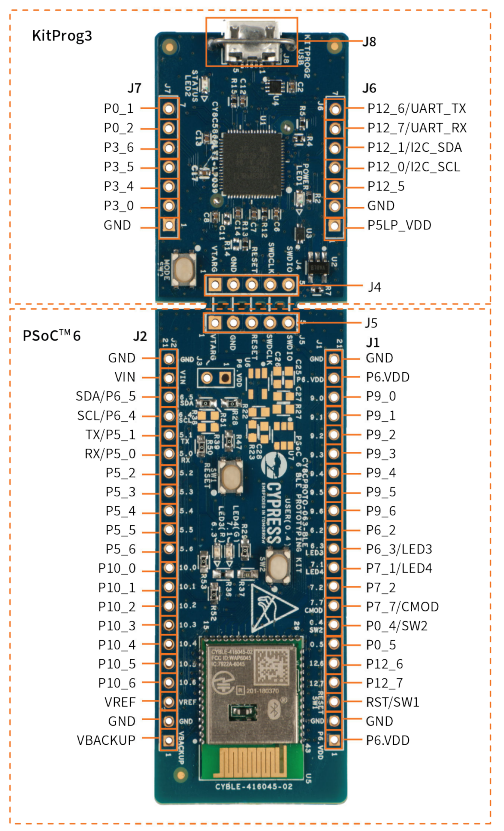

Pinout Diagram

_images/CY8CPROTO-063-BLE_pinout.png
